Cryogenic insulation · Sub-ambient service

ORYZA LTG

A lightweight, flexible aerogel blanket for sub-ambient and cryogenic service, with ultra-low thermal conductivity, outstanding hydrophobicity and an integrated vapour retarder. Built for LNG pipelines, cryogenic tanks and the cold chain.

0.012 W/m·KTemperatureBelow −129 °CIntegrated vapour retarderASTM C1728 · Type I · Grade 1B

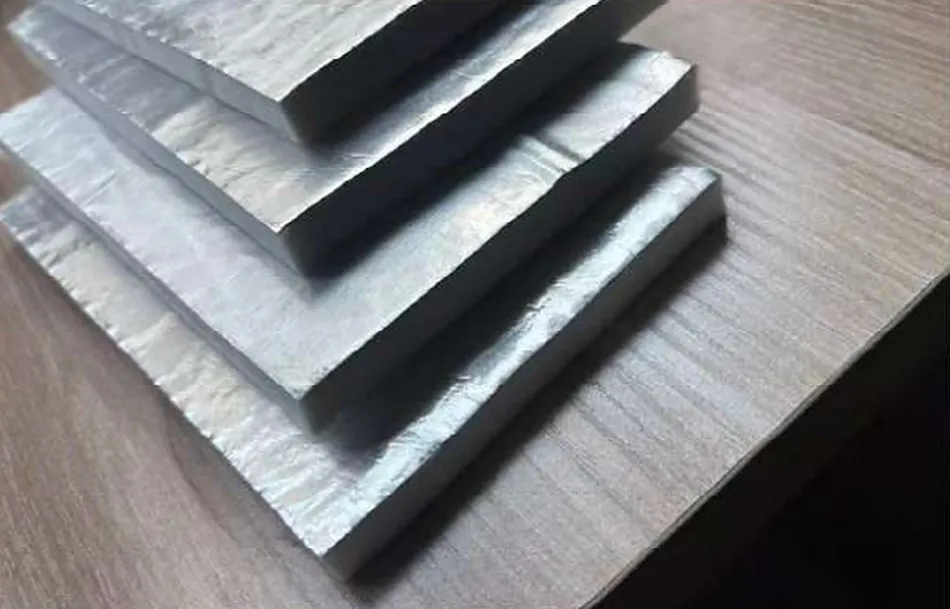

Stacked ORYZA LTG aerogel blankets with their foil vapour-retarder facing

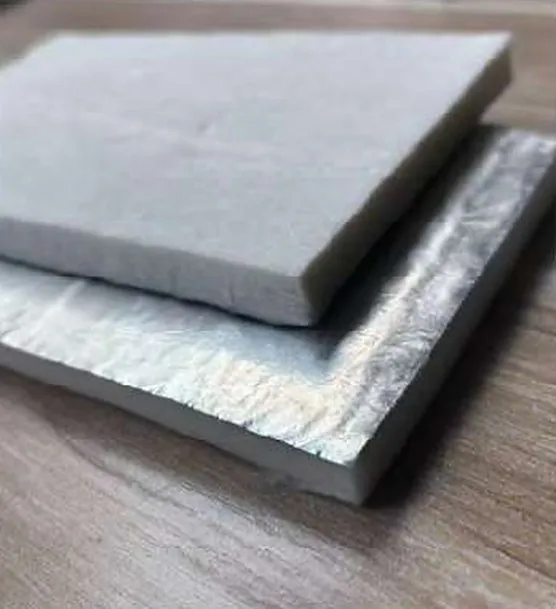

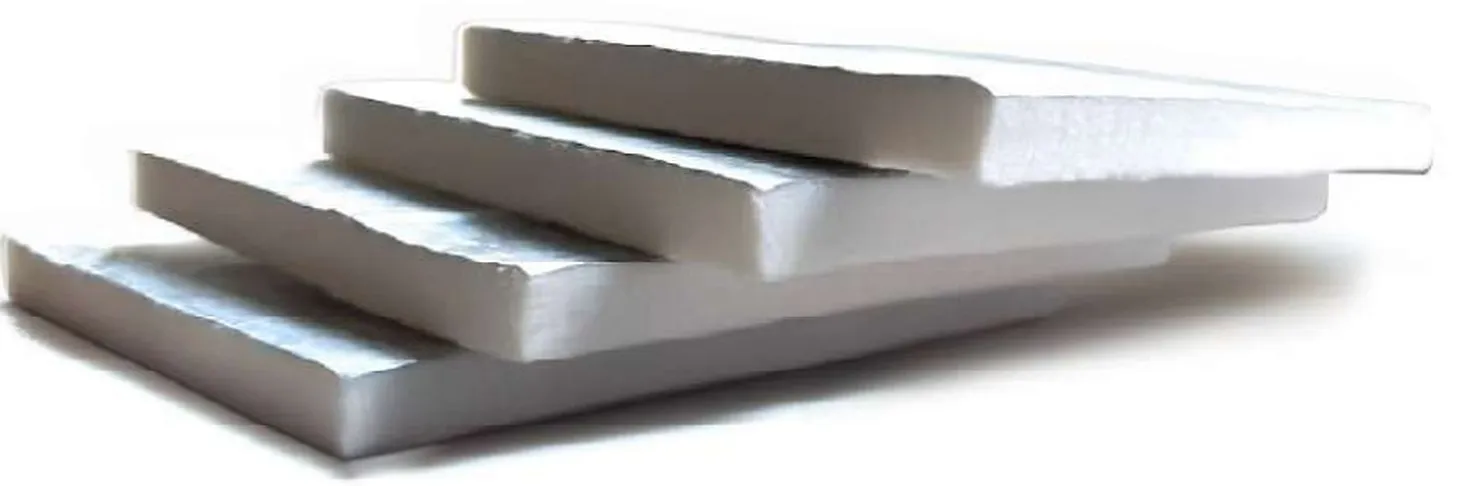

Close-up of the LTG blanket's white aerogel edgeLTG blankets stacked in layers
Integrated vapour retarderMoisture defence without a separate barrier layer
Fire performance, Grade ASurface burning characteristics to ASTM E84
Safe for workersLow dust, no crystalline silica content in residual dust
Key metrics

Colder lines, less insulation.

Thermal conductivity0.012 W/m·KTemperatureBelow −129 °CLeading cryogenic aerogel blankets: ~0.014*
Single-layer thicknessUp to 20 mmLeading cryogenic aerogel blankets: 5–10 mm*
Water vapour permeance, ASTM E960.00 permsVapour retarder built into the blanket

*Compared with publicly available datasheets of leading cryogenic aerogel blankets, with thermal conductivity to ASTM C177 at −129 °C mean temperature. Aerogel conductivity keeps falling as service temperature drops. Test conditions may differ. Full test data is available on request.

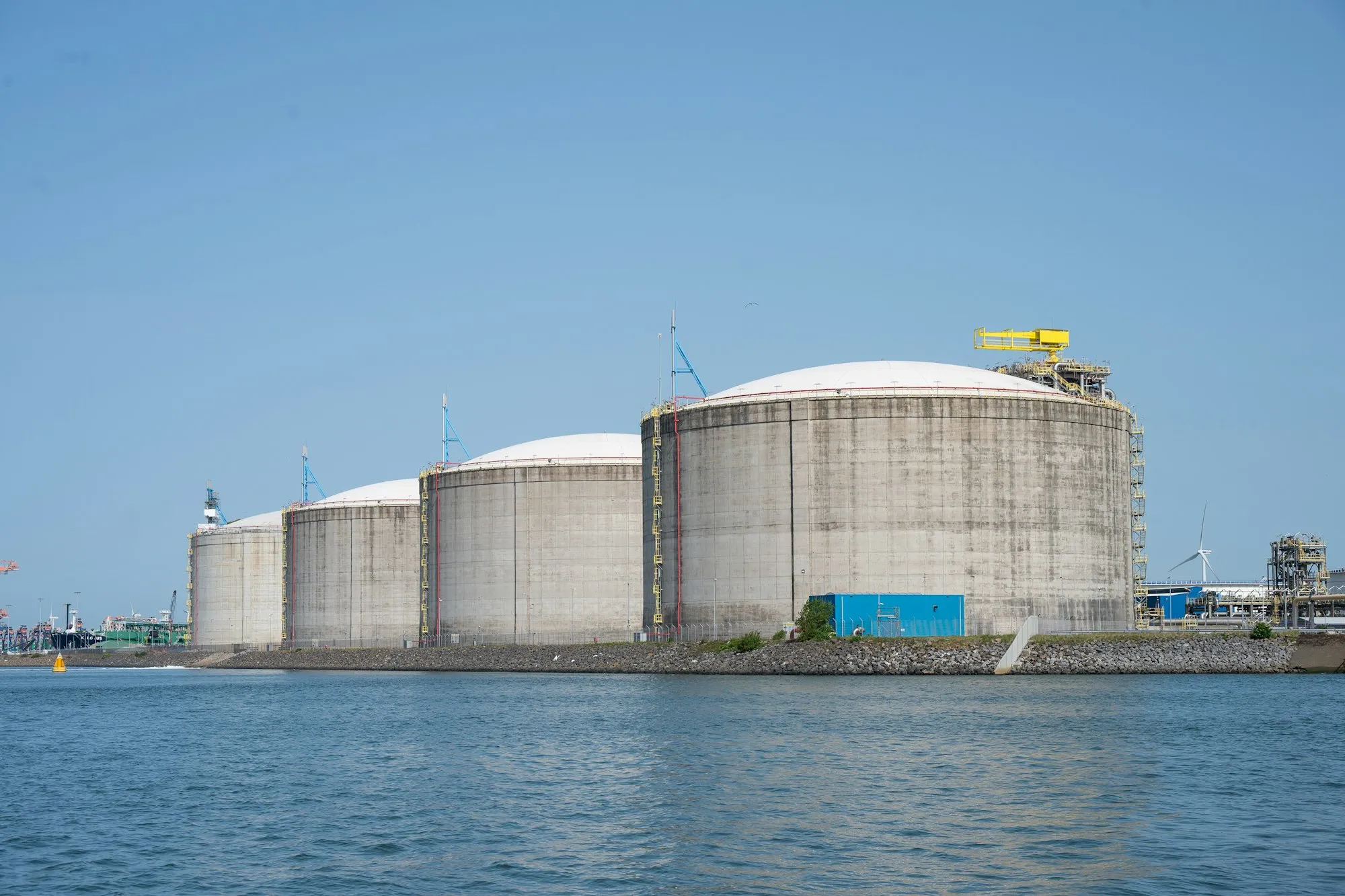

LNG storage tanks on the waterfront under a clear sky
Built for FLNG and LNG pipelines, cryogenic tanks, cold chain, transport and storage.

Why LTG

01

Superior insulation performance

Ultra-low thermal conductivity below −129 °C, for unmatched insulation and optimised use of space.

02

Engineered hydrophobicity

Advanced water repellence for superior corrosion protection.

03

Corrosion under insulation

Hydrophobic properties give enhanced protection against moisture-induced corrosion.

04

Seamless protection

An integrated vapour retarder adds defence against moisture while simplifying installation.

05

Engineered for total defence

Full-spectrum protection from heat, sound, fire and cryogenic exposure in one system.

06

Easy to handle

Low dust and low density make it quick to cut, fit and install on complex cryogenic geometry.

Technical documents

Request the full LTG datasheet.

Complete test data, the thermal conductivity curve and safety documentation are shared with project teams on request.

  • Technical datasheet, March 2026
  • Safety datasheet
  • Article information sheet

We review every request and reply by email. See our Privacy Policy.

More from ORYZA

Thermal · Temperature up to 650 °CORYZA SIL 650Thermal · prefabricatedORYZA PSIConstruction · A1ORYZA BGT

Specifying LTG for cryogenic service?

Our engineers can help with thickness, vapour control and installation for your line conditions.
