Thermal insulation · Hot service

ORYZA SIL 650

A high-performance aerogel blanket built to withstand extreme temperatures across energy applications. Exceptional hydrophobicity and breathability give superior protection against corrosion under insulation, with excellent passive fire protection.

TemperatureUp to 650 °CEuroclass A1ASTM C1728 · Type III · Grade 1A
White ORYZA SIL 650 aerogel blanket with water droplets beading on its surface

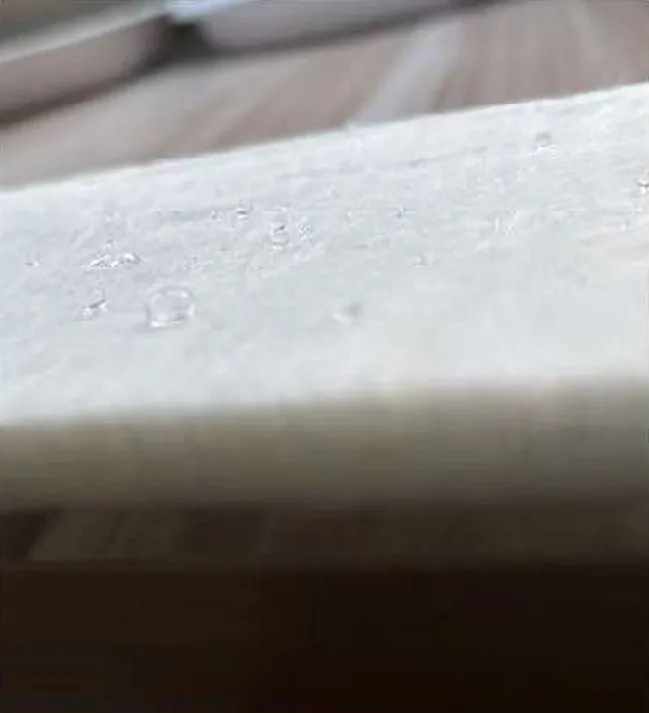

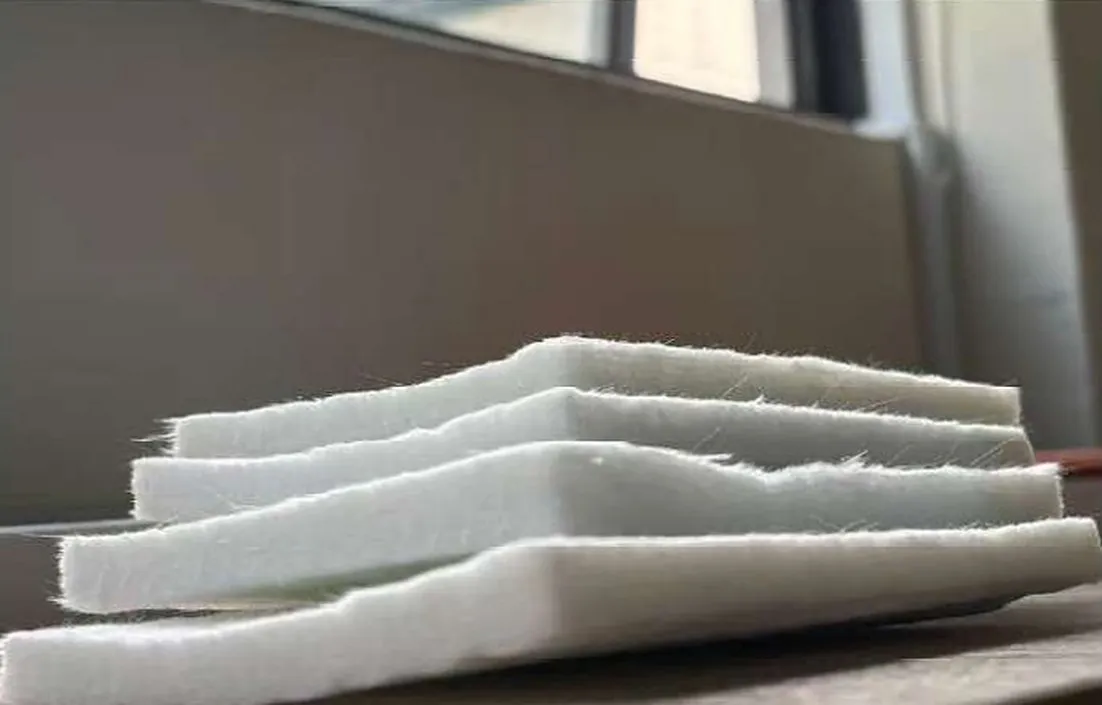

Close-up of the blanket's edgeStacked aerogel blankets seen from the sideAerogel blanket sheets fanned out
Singapore Green Building ProductSGBC rating Very Good · SGBP 4820/2
EPD verifiedEco Platform Environmental Product Declaration
Safe for workersNo crystalline silica content in residual dust
Key metrics

Ahead where it counts in hot service.

Thermal conductivity0.022 W/m·KTemperature149 °CLeading aerogel blankets: ~0.025*
Thermal conductivity0.029 W/m·KTemperature260 °CLeading aerogel blankets: ~0.032*
Reaction to fire, EN 13501-1A1Some aerogel blankets: B-s1,d0*
Thinnest blanket3 mmLeading aerogel blankets start at 5 mm*

*Compared with publicly available datasheets of leading high-temperature aerogel blankets (thermal conductivity to ASTM C177). Test conditions may differ. Full test data is available on request.

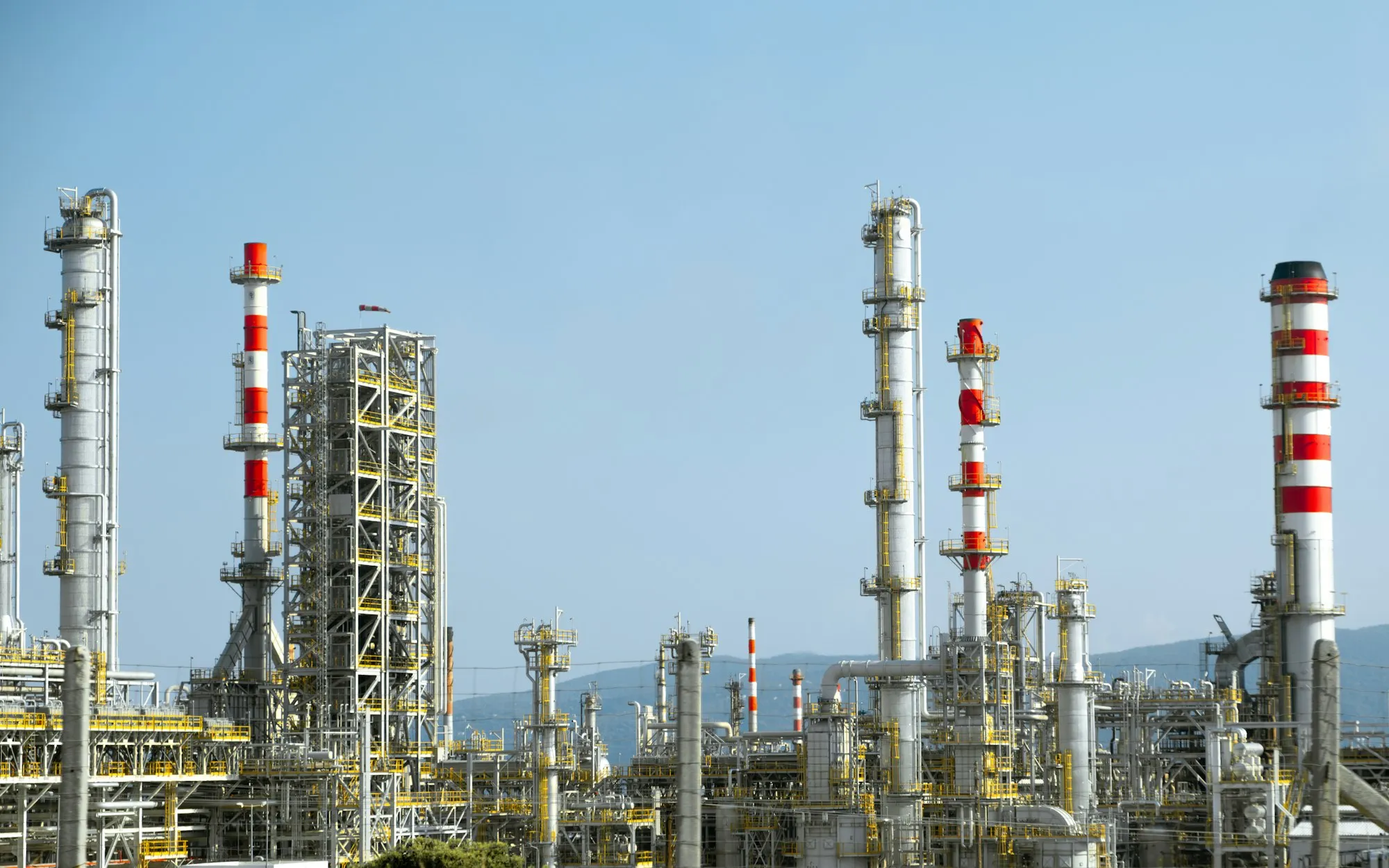

Refinery columns and stacks under a clear blue sky
Engineered for FPSO, marine modules, petroleum and petrochemical plants, process pipelines, valves and flanges, vessels and equipment.

Why SIL 650

01

Best-in-class CUI defence

Hydrophobicity, breathability, a thin profile, chemical resistance and durability keep water and corrosive substances away from the metal surface.

02

Fire performance, Grade A1

Euroclass A1 non-combustible, with excellent passive fire protection properties.

03

Safer to install

Low dust and low density make it easy to handle, and there is no crystalline silica content in residual dust, so it is safe for workers on contact.

04

Durable and long-lasting

Holds its shape and performance at sustained high temperature, with fewer replacements and less maintenance.

05

Streamlined logistics

Tailored to fit pipes, vessels, valves and flanges, significantly reducing material handling and inventory costs.

06

Lower construction costs

A lightweight profile allows smaller pipe racks and foundations, with substantial savings on steel, concrete and labour.

Technical documents

Request the full SIL 650 datasheet.

Complete test data, the thermal conductivity curve and safety documentation are shared with project teams on request.

  • Technical datasheet, September 2026
  • Safety datasheet
  • Article information sheet

We review every request and reply by email. See our Privacy Policy.

More from ORYZA

Thermal · prefabricatedORYZA PSICryogenicORYZA LTGConstruction · A1ORYZA BGT

Specifying SIL 650?

Our engineers can help with thickness, layout and installation for your service conditions.
